Project Area

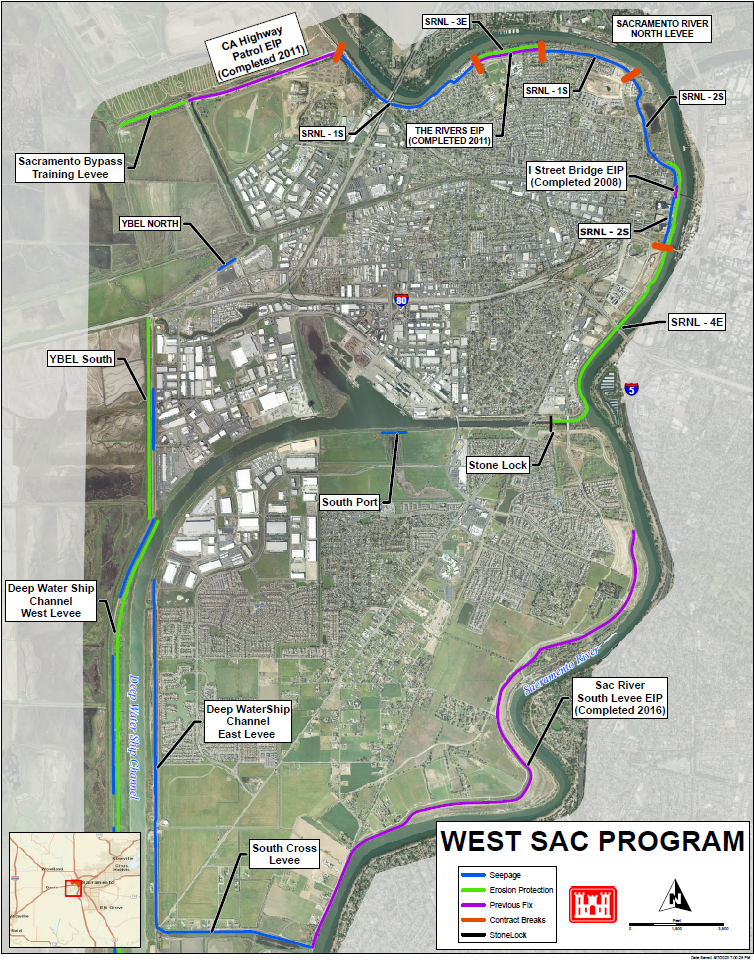

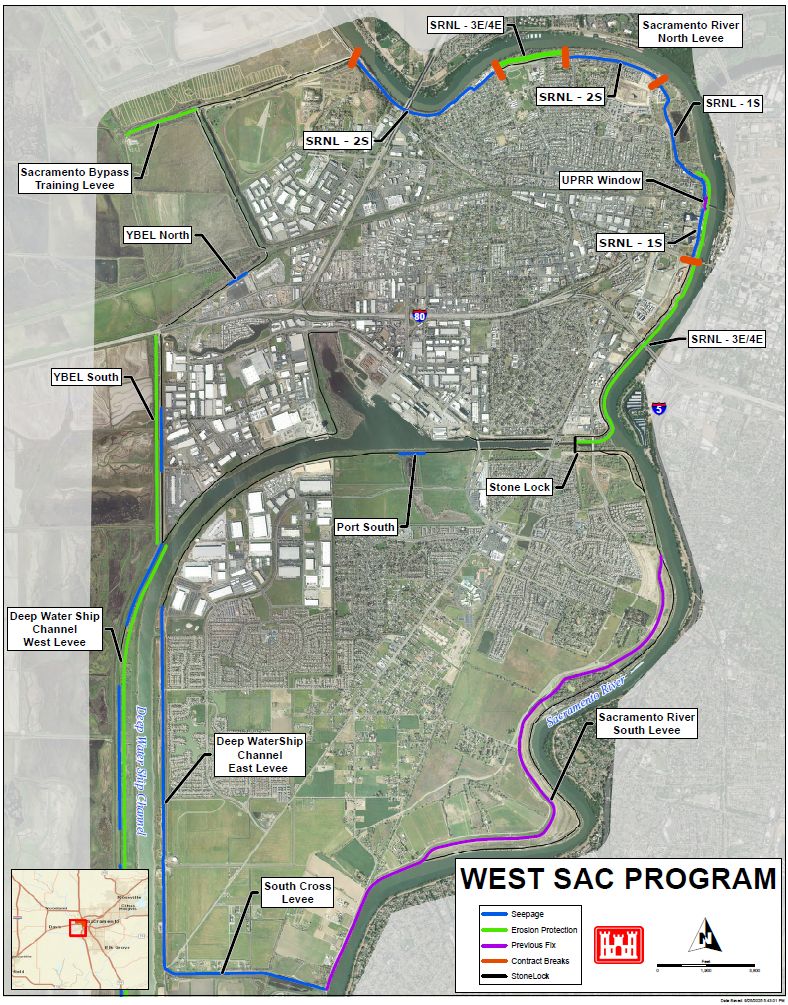

West Sac Study Area Map

Contact Information

For more information about the West Sacramento Levee Improvement Project, please contact us at:

Phone:  (916) 557-5100

Email:  spk-pao@usace.army.mil

Mailing Address
USACE Sacramento District
West Sacramento Levee Improvement Project
1325 J Street, Room 1640
Sacramento, CA 95814

West Sacramento Levee Improvement Project Background

The West Sacramento Levee Improvement Project area approximately corresponds with the city limit for the City of West Sacramento and is almost completely bound by floodways and levees with the Yolo Bypass to the west, the Sacramento Bypass to the north, the Sacramento River to the east and the South Cross levee along its southern boundary. The area encompasses two basins, broken up into north and south sections separated by the Sacramento Deep Water Ship Channel that bisects the city; and has nearly 13,000 acres of mixed-use land, an estimated population of 48,000 residents, and vital infrastructure including the regional United States Postal Service mail processing center, the regional California State Department of Water Resources flood fight facility, the California Highway Patrol Academy, and the Port of West Sacramento.

West Sacramento has a high probability of flooding due to its location at the confluence of the American and Sacramento Rivers, adjacent to the Yolo Bypass and within the Sacramento River floodplain. Both rivers have large watersheds with the potential for very high runoff which has overwhelmed the existing flood management system in the past. The city is virtually surrounded by a system of levees that provide flood risk management for the city, however the existing levee system was designed and built before modern construction methods were employed. All these factors contribute to the high probability of flooding.

There are over 30 miles of levee improvements around the north and south basins of West Sacramento. These improvements include slurry walls, slope protection, relief wells, and seepage berms that surround the north and south basins of West Sacramento.

Project Descriptions

Collapse All Expand All
 Sacramento Bypass Training Levee

This levee extends approximately 3,000 feet southwest of the Sacramento Bypass levee into the Yolo Bypass. Erosion protection improvements will be placed on the entire reach.

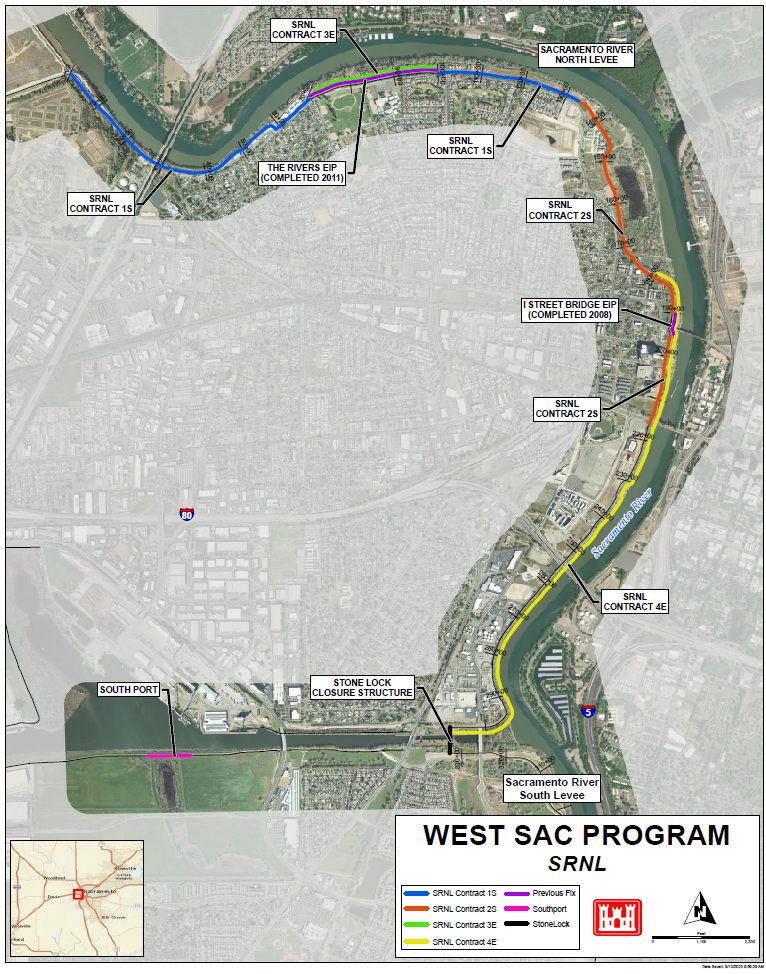

 Sacramento River North Levee


This area extends for approximately 30,700 feet (5.5 miles) along the Sacramento River right bank levee from the Sacramento Bypass south to the confluence of the Barge Canal and the Sacramento River. The general improvements for this reach include erosion protection on 14,300 feet of the reach and seepage improvements with slurry wall installation ranging from 30 feet to 110 feet in depth on 18,500 feet of the reach.

 Sacramento River South Levee/Southport Setback Levee

This effort was completed by the Non-Federal Sponsor and extends approximately 29,300 feet along the Sacramento River right bank levee from the confluence of the Barge Canal and the Sacramento River south to the South Cross levee. The general improvement for this reach includes construction of a setback levee with a slurry wall and berm to address seepage concerns.

 Stone Locks

Per the General Reevaluation Report, this area extends approximately 570 feet directly east of the inactivated Stone Locks. The improvements here will reconnect the Sacramento River North and South levees and close the connection from the Sacramento River to the inactive lock and barge canal. The general improvement for this reach is the construction of a new levee with embankment fill and sheet pile walls.

 Yolo Bypass East Levee North & South

The entire YBEL effort extends for approximately 19,750 feet along the Yolo Bypass levee left bank from the confluence of the Sacramento Bypass and the Yolo Bypass south to the Navigation Levee (DWSC West).

The improvements located north of HWY 80 were awarded in August 2023 and include an 800-foot toe drain and pump station.

The improvements for this southern reach were awarded in April 2023 and are located south of HWY 80 and include a seepage berm and 7,500 feet of rock slope protection.

 Deep Water Ship Channel (DWSC) – East

This effort extends approximately 17,000 feet along the Deep Water Ship Channel left bank levee from the end of Port South levee south to South Cross levee.

General Reevaluation Report calls for 14,600 feet of slurry wall ranging from 50 feet to 130 feet in depth, with other alternatives possible.

 Deep Water Ship Channel (DWSC) – West

This effort extends approximately 21.4 miles along the Deep Water Ship Channel (DWSC) right bank levee from the bend in the DWSC at the intersection of Port North levee and Yolo Bypass levee south to Miners Slough.

The General Reevaluation Report calls for installation of approximately 25,000 feet of slurry wall ranging from 50 feet to 85 feet in depth and 99,000 feet of erosion/bank protection along the Yolo Bypass side of the levee.

 South Cross Levee

This effort extends for approximately 6,400 feet from Jefferson Boulevard to the Sacramento River where it intersects the southern end of Sacramento River South levee.

The General Reevaluation Report calls for a 1,400-foot stability berm and 5,000 feet of levee improvements with relief wells to address seepage concerns.

 South Port

This effort is located on the southern bank of Lake Washington and includes 1,000 feet of seepage improvements and the installation of a 70-foot slurry wall.
